How to Choose the Right Hydraulic Quick Coupler for Your Excavator
A hydraulic quick coupler is the structural interface between your excavator’s dipper arm and every attachment it will carry. Choosing the wrong one costs more than the price difference — it means slower changeovers, accelerated pin wear, or an attachment running past its duty limit. Size the coupler to your excavator’s operating weight class, then verify pin diameter, pin center distance, hydraulic pressure and flow against the specification. This guide walks through those four parameters, gives a tonnage-based reference, and flags the selection mistakes we see most often in the field.
Why a Quick Coupler Is a Rated Component

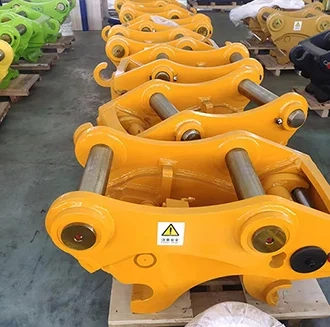

Beyond speed, a quick coupler is a rated structural link, not a convenient pin. It has a defined load path through the dipper arm, a safety lock that keeps the attachment secured if hydraulic pressure is lost, and a hydraulic circuit sized for the machine. Kingho Technology’s hydraulic quick hitch line is designed around those three elements for a wide range of excavator tonnage classes, and the double-lock variant adds a secondary mechanical latch for demolition and high-shock work.
The Four Parameters That Determine Fit
Gather these four values from the excavator’s data plate and hydraulic schematic before requesting a quote. Any one of them being off means the coupler will not perform as expected.
Excavator Operating Weight
Couplers are engineered to a weight class, not a single model. A unit rated for 20–26 t carries the bending and reaction loads of a 22-t machine; the same frame on a 30-t machine is running outside its design envelope. Confirm the operating weight — not the rated lift capacity — and pick a class that brackets it from above when in doubt.
Pin Diameter and Center Distance
The arm’s top and bottom pin holes are the physical interface. Measure the pin diameter (common values range 50–105 mm across mid- to large-class machines) and the center distance between the two pin centers. A coupler built for a 65 mm pin will not accept a 75 mm pin, and a center distance that’s off by even 20 mm changes the joint angle under load.
Hydraulic Pressure and Flow
A hydraulic quick coupler draws from the machine’s auxiliary circuit. Typical design values are 30–35 MPa working pressure and 20–40 L/min flow for mid-size units; verify against your excavator’s auxiliary specs. If the flow is too low, changeovers slow and the safety lock may not fully engage. If the coupler’s pressure rating is below the machine’s, the seals will fail early.
Operating Duty and Safety Architecture
Match the coupler’s safety design to how you use it. Demolition, recycling and heavy material handling favour double-lock or spring-return designs where the coupler defaults to locked if hydraulic pressure is lost. Lighter, lower-cycle work can run on a single-circuit design with a mechanical safety pin.
Coupler Size Reference by Excavator Tonnage
The table below is a working reference for shortlisting a coupler class. Confirm the exact pin dimensions and hydraulic requirements against the manufacturer’s specification for your machine model before ordering.
| Excavator Operating Weight | Typical Pin Diameter | Typical Center Distance | Suggested Coupler Class |
| 8–14 t | 50–65 mm | 320–420 mm | Small |
| 15–22 t | 65–75 mm | 420–520 mm | Mid |
| 23–32 t | 75–90 mm | 500–620 mm | Mid-large |
| 33–45 t | 90–105 mm | 600–720 mm | Large |
These ranges reflect common industry practice. Actual values must be confirmed against your excavator OEM data.
Common Selection Mistakes to Avoid
Four mistakes account for most field issues:
-
Sizing by machine brand instead of tonnage class. Brand-specific couplers exist, but a correctly classed universal unit with the right pin dimensions will work on most machines in the same weight range.
-
Ignoring pin center distance. Two couplers with the same pin diameter can still be incompatible if the center distance differs.
-
Undersizing the hydraulic circuit. A coupler that needs 35 L/min on a machine that only delivers 25 L/min changes over slowly and may not fully lock.
-
Running a single-circuit coupler in high-shock duty. Demolition and recycling work should use a design with a secondary lock so a hydraulic failure cannot release the attachment.
Maintenance Checklist for a Quick Coupler
A quick coupler is low-maintenance, but not maintenance-free. Check the following before each shift and on a scheduled service interval:
-
Pin holes and pin surfaces for wear, scoring or elongation
-
Safety lock indicator for correct engagement
-
Hydraulic hoses and quick-connect fittings for leaks or abrasion
-
Seal condition and cylinder rod for scoring
-
Mounting bolts and structural welds for fatigue cracks
Report any wear that exceeds the manufacturer’s limit dimension; continued use past that point voids the safety case.
FAQ
Once the coupler is sized, the next questions are usually about which attachments it will carry — for example, hydraulic shear vs. pulverizer — and how to keep the whole system safe under daily use. These five cover the follow-up decisions.
Can I Use the Same Quick Coupler on Multiple Excavator Models?
Yes, if the excavators fall in the same tonnage class with the same pin diameter and center distance. Confirm the hydraulic pressure and flow requirements are met by every machine’s auxiliary circuit before standardizing on one coupler.
What Hydraulic Flow Does a Quick Coupler Need?
For mid-size machines (15–30 t), plan on 20–40 L/min at 30–35 MPa working pressure. Always verify against both the coupler’s spec sheet and the excavator’s auxiliary hydraulic output.
How Often Should a Quick Coupler Be Inspected?
A visual check before each shift; a full inspection — pins, seals, lock mechanism, hoses — on a scheduled interval typically every 250–500 operating hours, or more often in high-cycle demolition and recycling work.
Will a Hydraulic Quick Coupler Hold the Attachment if Hydraulics Fail?
A well-designed coupler defaults to locked. The safety lock engages mechanically and check valves hold the cylinder in position, so loss of hydraulic pressure should not release the attachment. Verify this behavior on your specific model during commissioning.
Are Manual Pin Locks a Cheaper Alternative?
For low-cycle work, a manual pin lock is a lower-cost option that removes the hydraulic dependency. It trades changeover speed — minutes instead of seconds — for simplicity. Fleets doing frequent attachment changes typically recover the difference in labor and machine availability.
Find the Right Fit for Your Fleet
Send us your excavator’s operating weight, pin diameter, pin center distance and auxiliary hydraulic specs, and our engineering team will confirm the correct coupler class and check compatibility with the attachments you plan to run. Start from the grapple and attachment lines that typically pair with a coupler, or request a fitment review.
