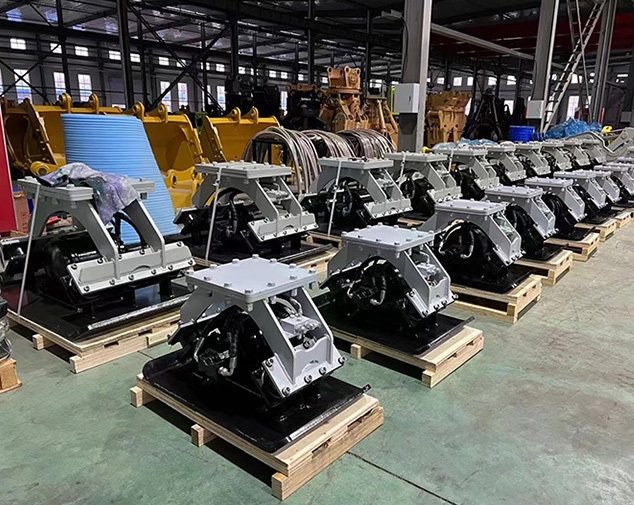

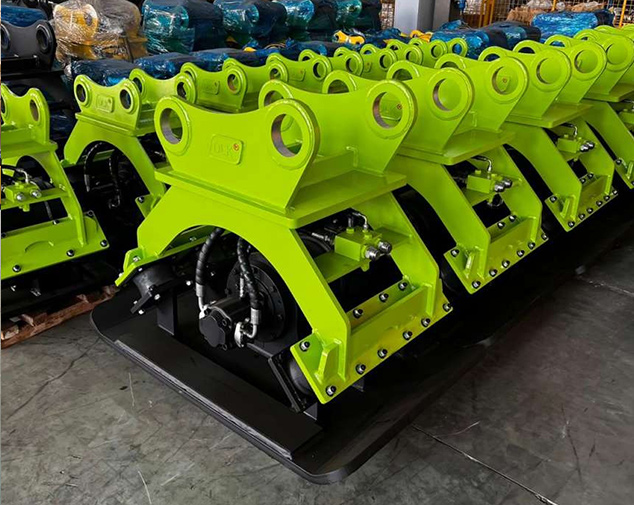

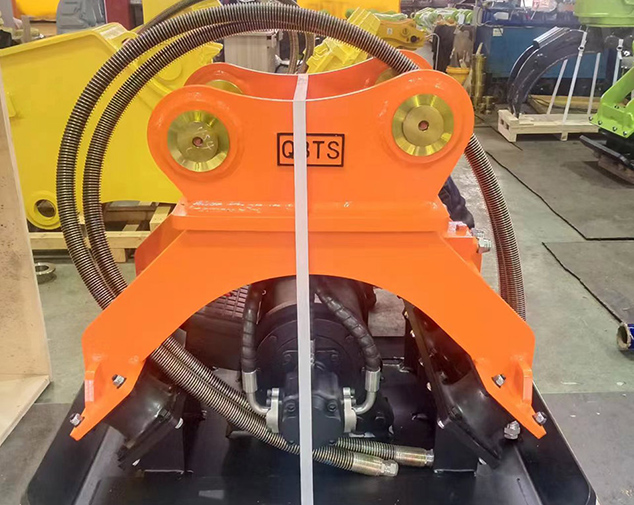

Hydraulic Plate Compactor
Specifications
| Item/Model | Unit | JSER02A | JSER04A | JSER06A | JSERO8A | JSER10A |
| Suitable Excavator | ton | 3-5 | 6-9 | 9-16 | 18-26 | 26-35 |
| Power of lmpulse | ton | 3 | 5 | 10 | 15 | 15 |
| Maximum Vibration | r/min | 1800 | 1800 | 1800 | 1800 | 1800 |
| Working Flow | lpm | 70 | 70 | 140 | 176 | 176 |
| Working Pressure | bar | 100-130 | 100-130 | 120-150 | 120-180 | 120-180 |
| Weight | kg | 200 | 325 | 560 | 900 | 950 |
| Bottom Measurement | L*W,mm | 735*470 | 900*550 | 990*700 | 1320*885 | 1718*1000 |
| Width | mm | 470 | 550 | 700 | 885 | 1000 |
| Heigth | mm | 620 | 676 | 845 | 1060 | 1100 |
Benefits & Features
Applicable objects ramming, ramming, piling and crushing of trenches, slopes, steps and complex terrains.
Main features using 0345 manaanese Dlate stee, hioh strenath and corosion resistance. The pin is made of 42CrMo alloy steel, with built-in oil passage, high strength and good toughness; The motor uses a hydraulic vibration motor imported from the United States, which is sturdy and durable Bearings use German imported FAG bearings, low noise, safe and reliable; The shock absorber adopts Korean Autox, which has good toughness and fatigue resistance
