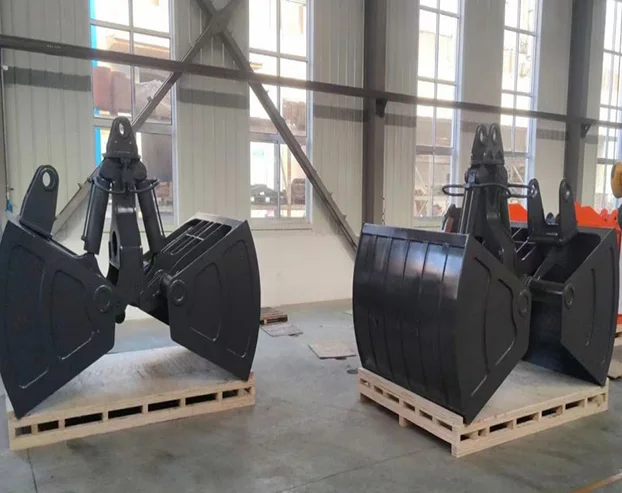

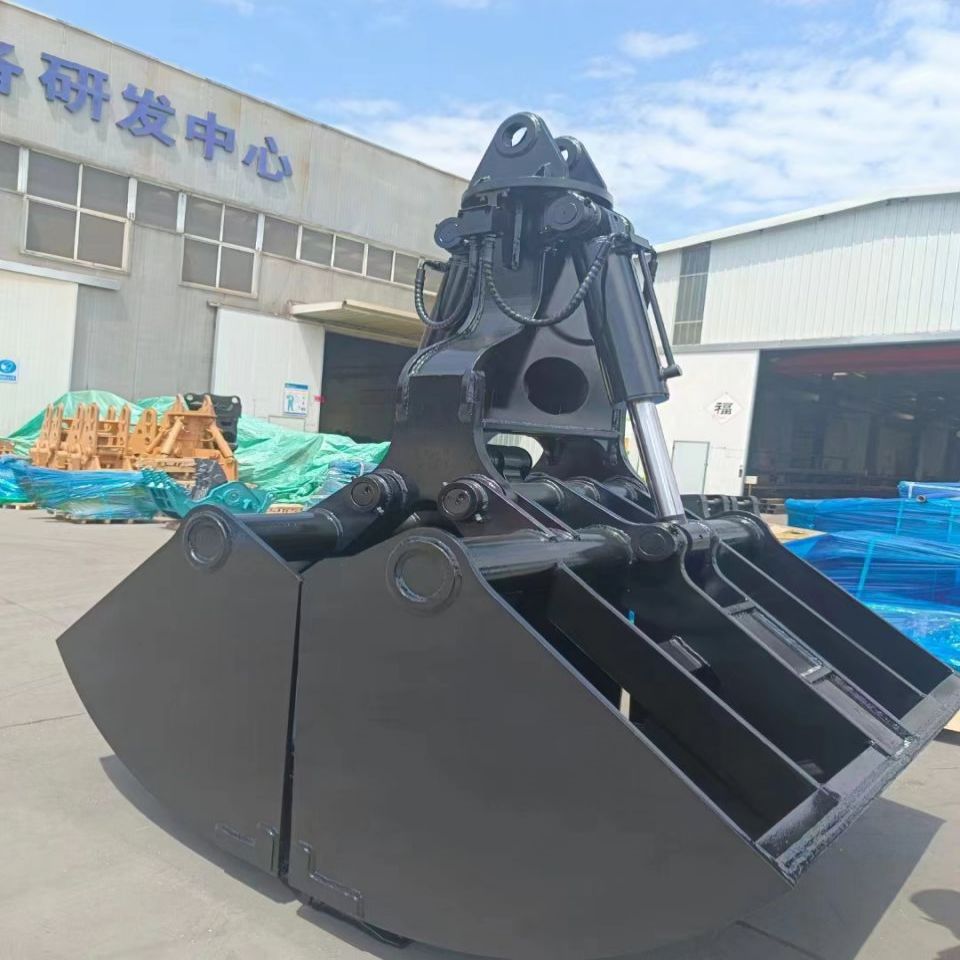

Clamshell Grab Shell Bucket (LOVOL FR130-7, FR80-7, FR15-7, FR230, FR35-7)

1.Introduction:

Traditional open buckets waste time repositioning for full loads and scatter material across the job site—costing you time, money, and environmental compliance headaches. Our clamshell grab bucket for LOVOL FR-series excavators loads 30% more material per cycle with zero spillage, engineered tooth design grips sand and gravel without slipping, and matches your LOVOL’s exact hydraulic specs for seamless, efficient operation.

2.Primary Applications:

Bulk material loading (sand, gravel, coal, ores)

Port and dock general cargo handling

Construction aggregate loading and spreading

Recycling and waste material sorting

Specifications

Parameter

Specification

Compatible Models

LOVOL FR130-7, FR80-7, FR15-7, FR230, FR35-7

Bucket Capacity

2.5-4.2 cubic meters (model-specific)

Material

High-strength alloy steel

Tooth Material

Hardened alloy steel, HRC 50-55

Opening Width

1.8-2.3 m

Shell Thickness

12-15 mm

Installation

Bolt-on mounting, standard coupler

Hydraulic Circuit

Dual-circuit (clamp + rotation optional)

Operating Pressure

280 bar (LOVOL-matched)

Self Weight

1200-1600 kg

Included Parts

Clamshell bucket × 1, user manual × 1

Delivery Timeline

In-stock: 15-30 days

Warranty

12 months full coverage, 12 months free support

Benefits & Features
  1.  Key Features & Benefits

    • LOVOL FR-Series Perfect-Fit Design — Purpose-built for FR130-7, FR80-7, FR15-7, FR230, FR35-7 models, zero-modification installation, matches hydraulic pressure and boom geometry exactly
    • Superior Material Grip — Specialized tooth pattern prevents material slipping and spillage, load capacity 30% higher per cycle than open buckets
    • Clamshell Double-Shell Construction — Two interlocking shells provide secure containment during transport, zero spillage on open-bed truck transfers
    • Hardened Alloy Steel Teeth — Wear-resistant teeth maintain grip strength through 1500+ operating hours
    • Operator-Controlled Hydraulic Closure — Driver adjusts grip pressure from cabin, accommodates fine sand to coarse aggregate without spillage



  2. Get Your Free Equipment Compatibility Assessment

    Unsure about fitment? Share your excavator tonnage and model, and our engineering team will provide a detailed compatibility report within 2 hours.
